15" 1500-Watt RMS Dual 2Ω Car Audio Subwoofer

The Next Level

For over 10 years, the MTX 95 name has been synonymous with unmatched SPL output and legendary performance. The new 95 builds on that legacy with new technologies that take this Subwoofer to levels never before acheived. This subwoofer is designed to produce bass, plain and simple.

It is ideal for competitors looking to take their systems to the next level, for those wanting the best sounding subwoofer available for their primo ride, and for everyday enthusiasts that want a "live concert" happening in their cars instead of that boring stock audio experience.

SKU: 9515-22

Sold Individually

Quick Glance Icons

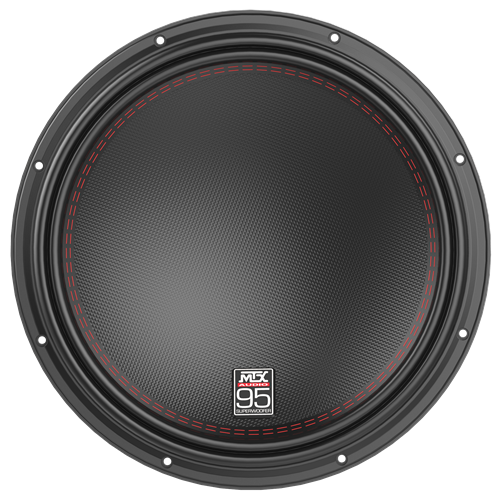

Inverted Apex Surround

The Inverted Apex Surround replaces the older style high roll surround. This new surround design increases effective surface area of the cone by using half the width of an older style surround without sacrificing any excursion. Couple that incredible excursion with increased surface diameter and the result is exponentially increased SPL output.

Thermal Management

Spider Plateau Venting is a mechanical cooling process that circulates hot air for cool air at the voice coil as the subwoofer continuously cycles. An integrated voice coil heatsink helps reduce voice coil temperature, dissipating it through its mass and out away from the voice coil.

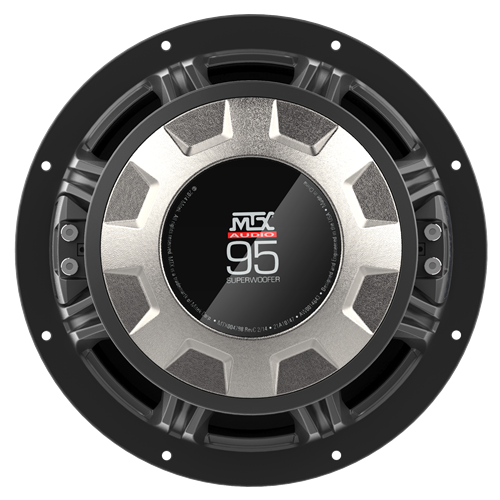

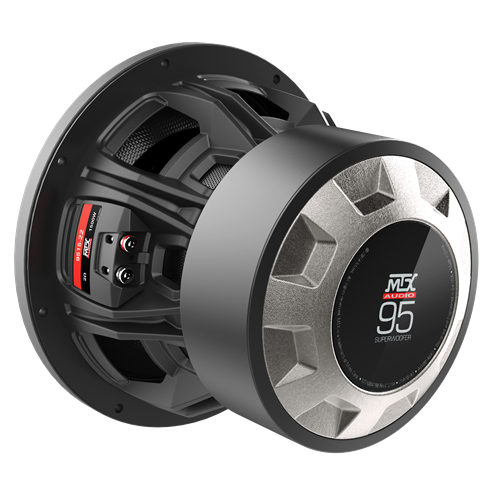

Radial Ribbed T-Yoke

The specially designed backplate on the 95 Series not only gives it an impressive stance, but acts as an additional medium to conduct heat away from the voice coil. The increased surface area of the backplate dissipates additional heat ensuring the 95 subwoofer plays with lower distortion for extended periods.

95 Series Overview

Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:

SPECIFICATIONS

RMS Power (Watts)	1500
Impedance	Dual 2Ω
Recommended Amp Power (RMS)	750 - 1500
Sensitivity	84.9dB
Xmax	1.25"
Frequency Response	17Hz - 100Hz
Volume Displacement (cu in)	173.7
Mounting Depth	10-1/4 in
Cut Out Diameter	13-7/8 in
Sealed Enclosure Net Volume	2.0 cu ft
Vented Enclosure Net Volume	2.4 - 3.4 cu ft
Warranty Period	24 months from date of purchase

SUPPORT FILES

9515-22 Tech Data Sheet (2 pages)

View | Download

50Hzmp3

Download
