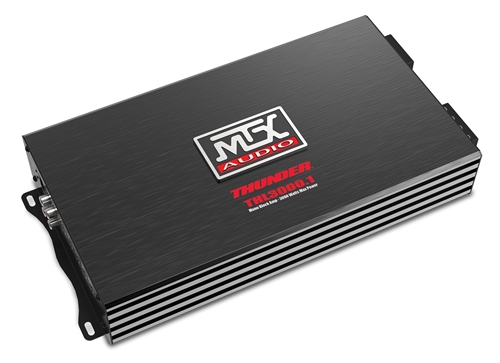

MTX THL3000.1 1000W RMS Mono Block Class D Amplifier

Great Starter Amp

The MTX THL3000.1 is a mono block class D amplifier designed to deliver high fidelity audio to your subwoofers. The THL3000.1 features a low pass filters allowing you to customize your sound. A clean, finned design, optimizes thermal management and allows you to play your system how you want to. The THL3000.1 is designed to work flawlessly in conjunction with MTX THL subwoofers.

Class D Topology 1Ω Stable

SKU: THL3000-1

Great Starter Amp

High performance power at an unbeatable price

Thermal Management

Dissipates heat even during those party blasts

Bring On The Bass

Delivers the power to deliver the bass back into your music

Key Features

Finned Anodized Aluminum Heatsink

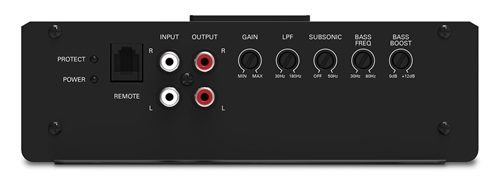

Low Level RCA Inputs
Variable Low Pass Crossover
Subsonic Filter
Bass Boost Control
Low Level RCA Output

SPECIFICATIONS

4Ω RMS Power Output	300W x 1 Channel
Signal to Noise Ratio	>70 dB
2Ω RMS Power Output	500W x 1 Channel
1Ω RMS Power Output	1000W x 1 Channel
Topology	Class D
THD	<0.5%
Frequency Response	10Hz - 180Hz
Crossover	30Hz - 180Hz, 12dB/Oct
Subsonic Filter	15Hz - 50Hz, 12dB/Oct
Bass Boost	Variable, 0 - 12 dB @ 30Hz - 80Hz
Max Sensitivity	200mV
Maximum Input Signal	6V
Height	7.17" (182.12mm)
Width	13.95" (354.33mm)
Depth	2.34" (59.44mm)
