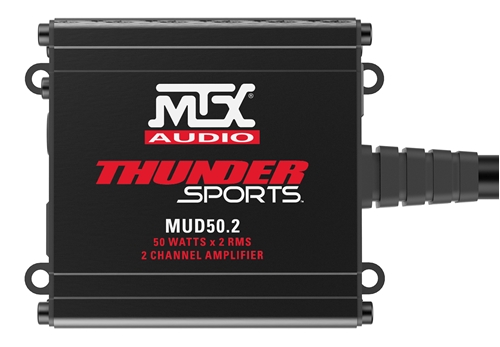

100-Watt RMS 2-Channel Powersports Amplifier

Rugged, Compact & Powerful

Powerful, yet compact, audio amplifier that can be installed on any UTV, boat, sand rail, or motorcycle.

The MTX MUD50.2 is the most compact amplifier that MTX has ever made. This unit features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 2 channels that are capable of delivering 50 watts of RMS power per channel @ 2Ωs. More than enough power to drive a pair of full range speakers on a motorcycle or UTV.

Availability: In stock
SKU: MUD50-2
Sold Individually
Quick Glance Icons
  • 2-Ohm Stable
  • Full Range Class D

Did You Know?

The MUD50.2 is the ideal compact, yet powerful, amp for outdoor UTV, marine and bike audio applications. It's two year warrenty is best in class.


Wake Boat with MTX Audio

Compact And Powerful

The MTX MUD50.2 is the most compact amplifier that MTX has ever made. This unit features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 2 channels that are capable of delivering 50 watts of RMS power per channel @ 2Ωs. More than enough power to drive a single or dual full range speakers per channel.

Outdoor Rugged

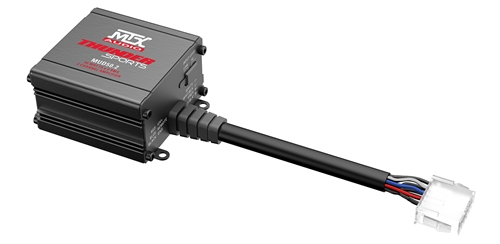

The entire unit is weather resistant including a conformal coated circuit board and control covers that prevent damage from moisture intrusion. The unique design includes a pigtail that contains all of the wiring necessary to connect power, ground, and signal without having to make a connection directly at the amplifier. This pigtail keeps moisture, dirt, and other hazards from harming the internal components of the unit, ensuring you can enjoy your music wherever the trail takes you.

FEATURES
  • Compact Design - The small footprint chassis allows for installation in space challenged vehicles

  • Conformal Coated Circuit Board - Protects against corrosion or circuit deterioration due to exposure to moisture or salt conditions

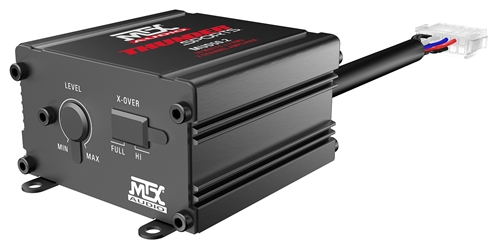

  • Fixed Crossover - High and Low Pass Crossovers Allow Use with Full Range Speakers or Subwoofers

  • High Level and Low Level Inputs

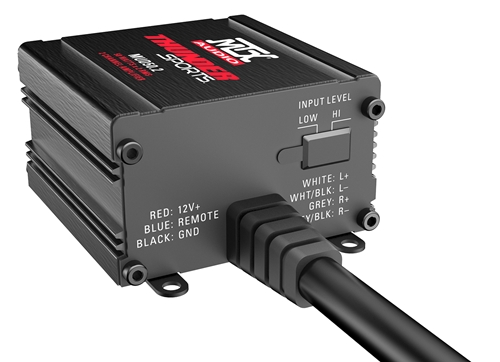

  • High and Low Level Inputs - Allows connection to both Speaker and  RCA Input signals

SPECIFICATIONS
Description 2-Channel
4Ω RMS Power Output 25W x 2 Channels
2Ω RMS Power Output 50W x 2 Channels
1Ω RMS Power Output NA
Topology Full Range Class D
THD <1.0%
Frequency Response 11Hz - 40kHz
Crossover Fixed HPF @ 80Hz, 12dB/Oct
Max Sensitivity 200mV
Maximum Input Signal 5V
Height 3.64" (92.5mm)
Width 2.85" (72.5mm)
Depth 1.73" (43.9mm)
Warranty Period 24 months from date of purchase

SUPPORT FILES
MTX005171 MUD50.2 Owner's Manual (28 pages) MTX005171 MUD50.2 Owner's Manual (28 pages)
