SKU: THL10-44

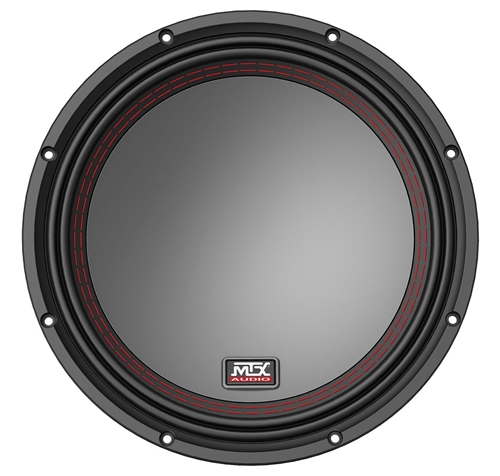

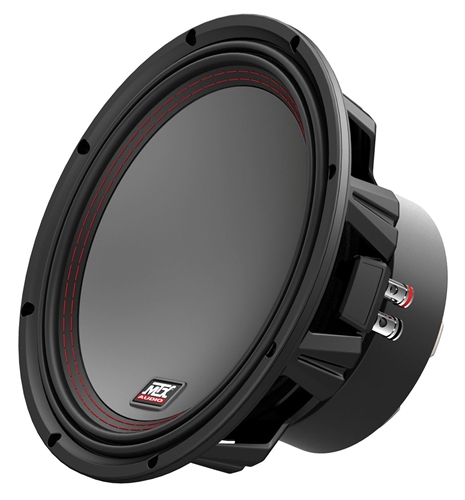

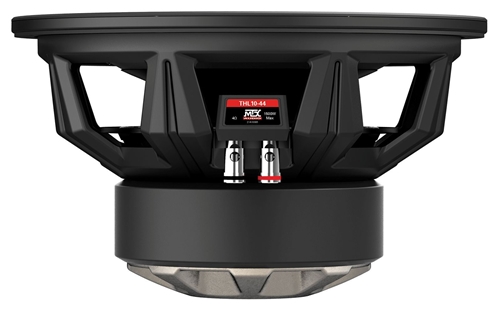

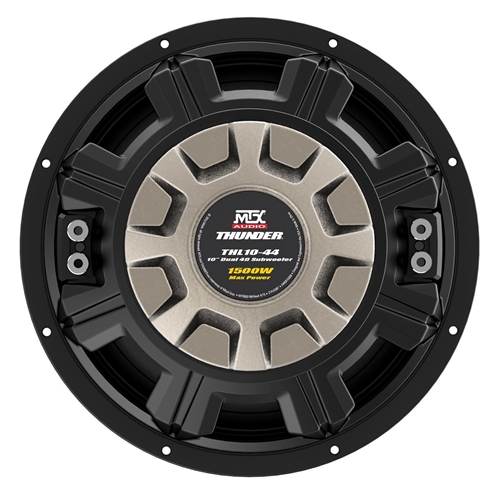

THL10-44 10 inch 500W RMS Dual 4 Ohm Subwoofer

High SPL Subwoofers

THL Series Subwoofers are high SPL subwoofers that deliver the most bass for your buck.

Implementing many of the same features found on our 75 & 95 Series SuperWoofers, the THL Series can rock hard and loud for extended periods of time, while maintaining accurate and clean bass throughout the party. You will be impressed.

The THL10-44

The THL10-44 is a 10″ dual voice coil, 500 watt, 4 ohm subwoofer built on the MTX tradition of getting more than expected. The THL Series subs are often used in applications where bass levels are the most important factor. These subwoofers are designed to move air and go boom! They are true monsters of bass and are a great choice for anyone that really wants to be heard.

    Inverted Apex Surround

    Creates higher volume displacement, higher SPL and less distortion.

    Progressive Suspension

    Controls excursion at high power lowering 3rd order distortion.

    Radial Ribbed T-Yoke

    Dissipates heat and decreases distortion.



    The THL Series

    The THL Series, is based on MTX's best selling subwoofer family the 55 Series and is available exclusively to MTX customers in Mexico. This subwoofer is a perfect mix of performance and value for enthusiasts that want to add extreme bass to their system without breaking the bank. We have squeezed an oversized cone into the standard 12" frame, so the sub moves more air and gives you more bass. The woofer's movement cools the sub as it plays, so it doesn't overheat when you're rocking out. The special suspension exerts extra control when you're pushing the sub hard. Some would say that we've once again out done ourselves, but it only gets better and better.

    If you want to have the best sounding, loud and pounding bass around perfect for any music whether you jam to Maná, Julieta Vengas, or Pitbull, then the THL Series is your subwoofer.

    THL Series Key Features

    • Expanded surface area allows for increased volume displacement and SPL
    • Progressive suspension controls excursion at high power reducing distortion
    • Inverted Apex surround with symmetrical geometry controls cone movement
    • Radial ribbed t-yoke dissipates heat and decreases distortion
    • 2.0" xmax, high temperature voice coil


    The MTX Inverted Apex Surround

    This subwoofer features the MTX Inverted Apex Surround. This is a departure from a traditional half roll surround. The Inverted Apex is narrower thereby increasing the surface diameter of the subwoofer cone enabling it to displace more air and generate higher SPL. The THL's are designed with a progressive suspension that lowers distortion resulting in improved sound quality even at high volume.

    Spider Plateau Venting

    This subwoofer also incorporates Spider Plateau Venting which is a mechanical cooling process that targets cool air at the voice coil and a radial ribbed t-yoke that acts as a heat sink effectively managing the subwoofer temperature for long term rocking performance.

    SPECIFICATIONS
    RMS Power (Watts) 500
    Recommended Amp Power (RMS) 250 - 500
    Peak Power (Watts) 1000
    Frequency Response 28Hz - 130Hz
    Sensitivity 83.5dB (1W/1m)
    Voice Coil 2" (5.08 cm)
    Magnet Weight 56 oz
    Mounting Depth 5.625"
    Cut Out Diameter 9.188"
    Volume Displacement (cu in) 35.0 cu in
    Sealed Enclosure Net Volume 0.75 cu ft
    Vented Enclosure Net Volume 2 cu ft
    SUPPORT FILES
    Tech Data Sheet with T/S Parameters (2 pages) View | Download
