SKU: TNL100-4

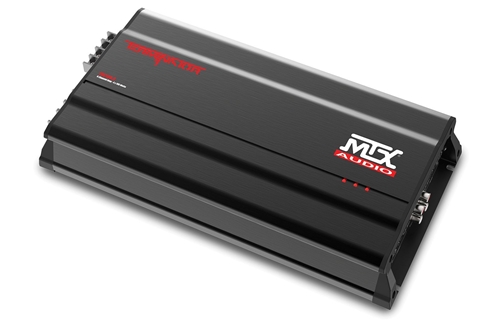

TNL100.4 280W RMS 4-Channel Class A/B Amplifier

MTX TNL100.4 is designed to work with an assortment of speakers and is capable of delivering up to 600 watts peak power in an incredibly small package.

For perfect operation the Active Crossover makes it easy to match it to the connected speakers.

    Surface Mount Design

    Resists vibration for reliability under the harshest conditions

    Small Footprint

    Easy install in any vehicle, anywhere

    Variable Crossover

    Tune a wide range of speakers to perfection

    High Level Inputs

    Connects to your speaker output, no need for RCA jacks

    High Power High Value

    The TNL100.4 is a high powered full range amplifier capable of delivering up to 600 watts Peak power at 2Ω. Additionally, the unit is designed to be installed in almost any vehicle due to its small chassis size.

    TENL100.4 Key Features

    • Full Range for Wide Variety of Speakers
    • Small Footprint
    • Extruded Aluminum Heat Sink
    • Surface Mount PCB Design
    • Selectable Crossovers

    Did You Know?

    The TNL100.4 is a full range amplifier that uses one of the smallest footprints in the MTX amplifier lineup. The TNL100.4 is capable of producing up to 600W Peak and features 2 ohm stability

    Technologically Advanced

    The TNL100.4 features surface mount technology. This design uses smaller more efficient parts that adhere to the circuit board much better than traditional through hole designs making it extremely vibration resistant.

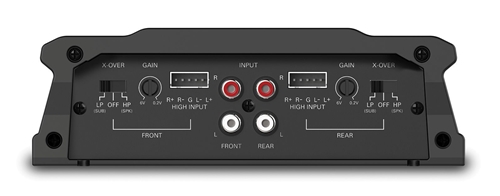

    Easy Adjustment

    The control panel on the TNL100.4 is easy to access and make adjustments. The unit includes a high and low pass filters set at 12db/octave @ 80hz.




    SPECIFICATIONS
    Description 4-Channel
    Peak Power (Watts) 280
    4Ω RMS Power Output 40W x 4 Channels
    Signal to Noise Ratio 80dB
    2Ω RMS Power Output 75W x 4 Channels
    1Ω RMS Power Output NA
    Topology Class A/B
    THD <1%
    Frequency Response 10Hz - 50kHz
    Crossover Variable LPF 50Hz to 750Hz (Rear), Variable HPF 10Hz-200Hz (Front), Variable HPF 50Hz-750Hz (Rear), 12dB/Oct
    Max Sensitivity 200mV
    Maximum Input Signal 6V
    Height 6.5"
    Width 13.27"
    Depth 2.09"
    SUPPORT FILES
    Owners Manual Owners Manual (20 pages) View | Download
