SKU: TNL600.1

TNL600.1 600W Max Power Mono Block Class D Amplifier

Feel the Thunder

MTX TNL600.1 is designed to work with an assortment of subwoofers and is capable of delivering up to 600 watts peak power in an incredibly small package.

For perfect operation the Active Crossover makes it easy to match it to the connected sub or speakers.

    Surface Mount Design

    Resists vibration for reliability under the harshest conditions

    Small Footprint

    Easy install in any vehicle, anywhere

    Variable Crossover

    Tune a wide range of speakers to perfection

    High Level Inputs

    Connects to your speaker output, no need for RCA jacks


    High Power High Value

    The TNL600.1 is a high powered subwoofer amplifier capable of delivering up to 600 watts Peak Power at 2Ω. Additionally, the unit is designed to be installed in almost any vehicle due to its small chassis size.

    TNL600.1 Key Features

    • Mono block amp for subwoofer(s)
    • Small Footprint
    • Extruded Aluminum Heat Sink
    • Surface Mount PCB Design
    • Selectable Crossovers

    Did You Know?

    The TNL600.1 is a mono block amplifier that uses one of the smallest footprints in the MTX amplifier lineup. The TNL600.1 is capable of producing up to 600W MAX and features 2 ohm stability.


    Technologically Advanced

    The TNL600.1 features surface mount technology. This design uses smaller more efficient parts that adhere to the circuit board much better than traditional through hole designs making it extremely vibration resistant.

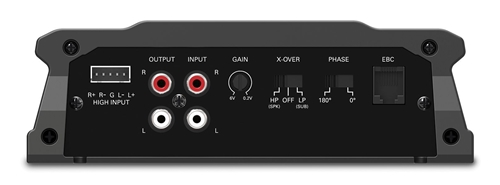

    Easy Adjustment

    The control panel on the TNL600.1 is easy to access and make adjustments. The unit includes a high and low pass filters set at 12db/octave @ 80hz.



    SPECIFICATIONS
    Description Mono Block
    Peak Power (Watts) 200
    4Ω RMS Power Output 150W x 1 Channel
    Signal to Noise Ratio 75dB
    2Ω RMS Power Output 200W x 1 Channel
    1Ω RMS Power Output NA
    Topology Class AB
    THD <1%
    Frequency Response 10Hz - 220Hz
    Crossover Selectable Low or High @ 80Hz, 12dB/Oct
    Max Sensitivity 200mV
    Maximum Input Signal 6V
    Height 6.5"
    Width 9.17"
    Depth 2.09"
